The missing link in border protection
|
|
Situation: Hospital
Integrated within existing sanitary facilities

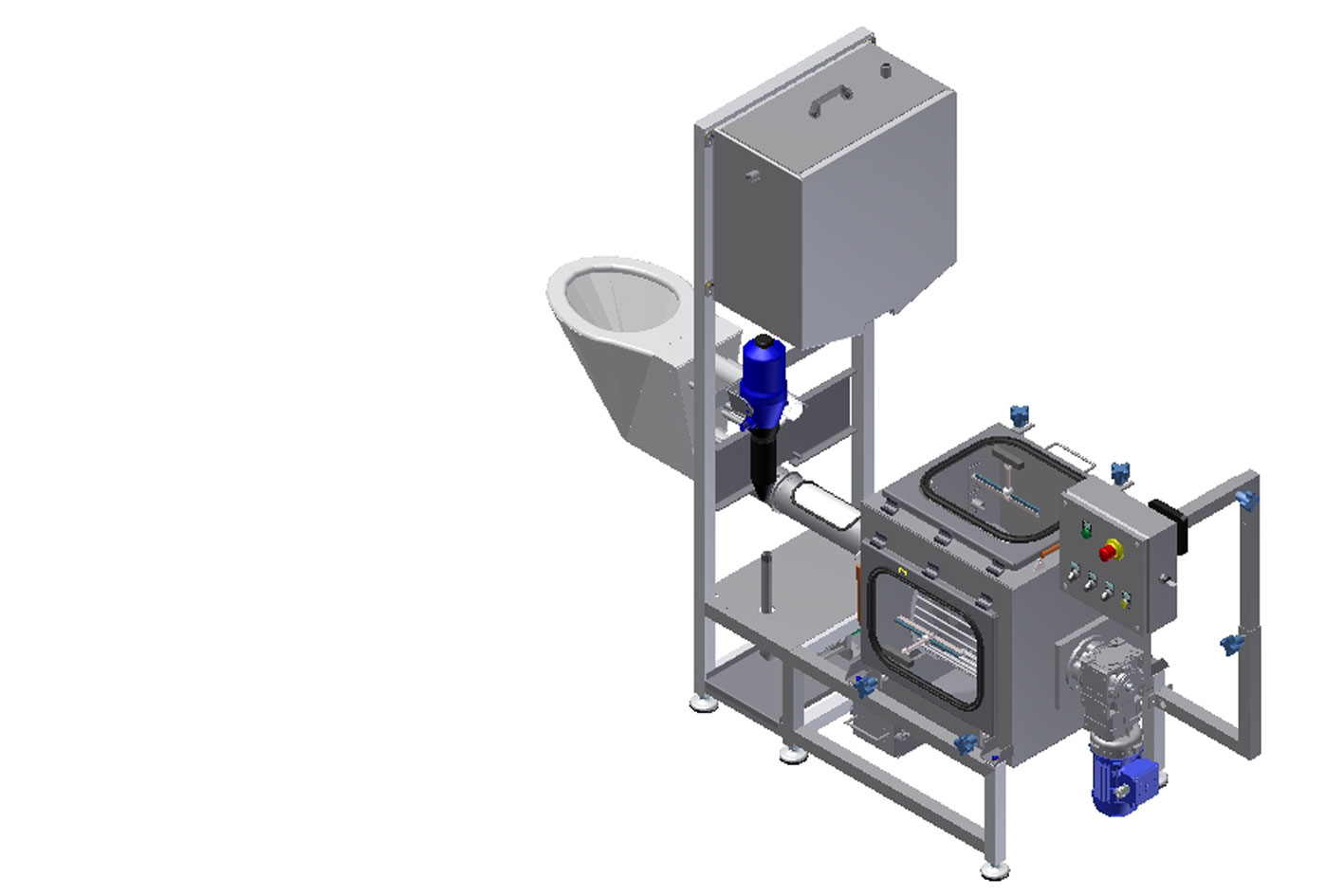

In this configuration the existing toilet facilities, consisting of a shower and toilet unit, are replaced by an automatic Drugloo
that is fitted with a
semi-automatic control. The toilet unit is vandal proof and, if required, the Drugloo can also be used as a regular toilet. The entire installation fits within a floor space of just under 6m2. |
Composition :
System:
Control: Overall dimensions(cm) : Usage: Infrastructure: Automatic
Semi-automatic 300x180x250(lxwxh) Itensity Power 230VAC/16A Extraction 80mm Sewerage 90mm Water pipe 15mm 2bar |

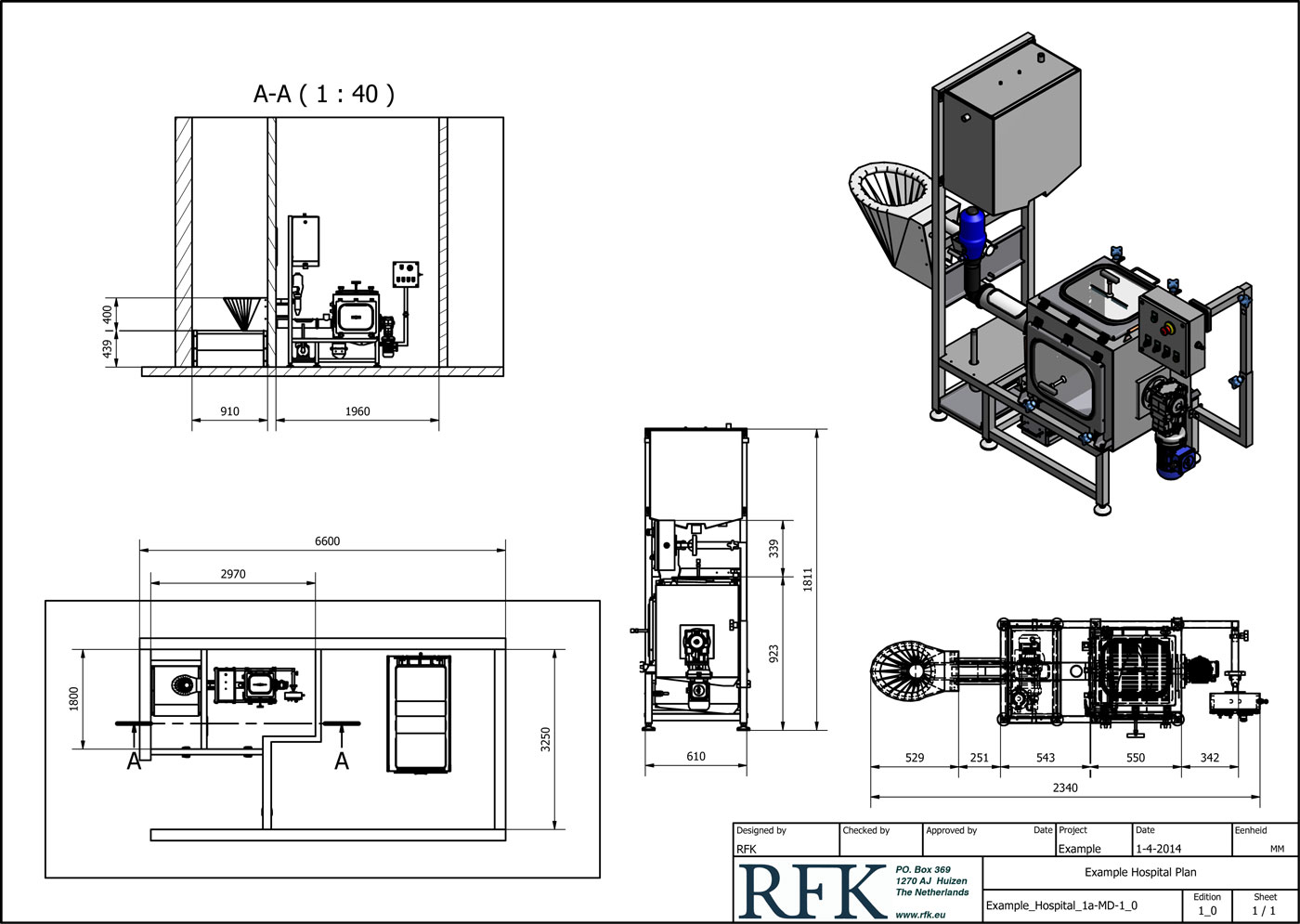

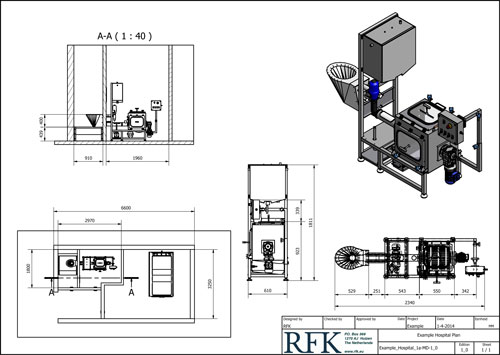

Dimensions in mm (front view)
|
||||
Features:
* Floor area 6m2 * Fits in existing toilet facilities * Low construction costs * Easy operation * Low maintenance costs |
Slideshow
|

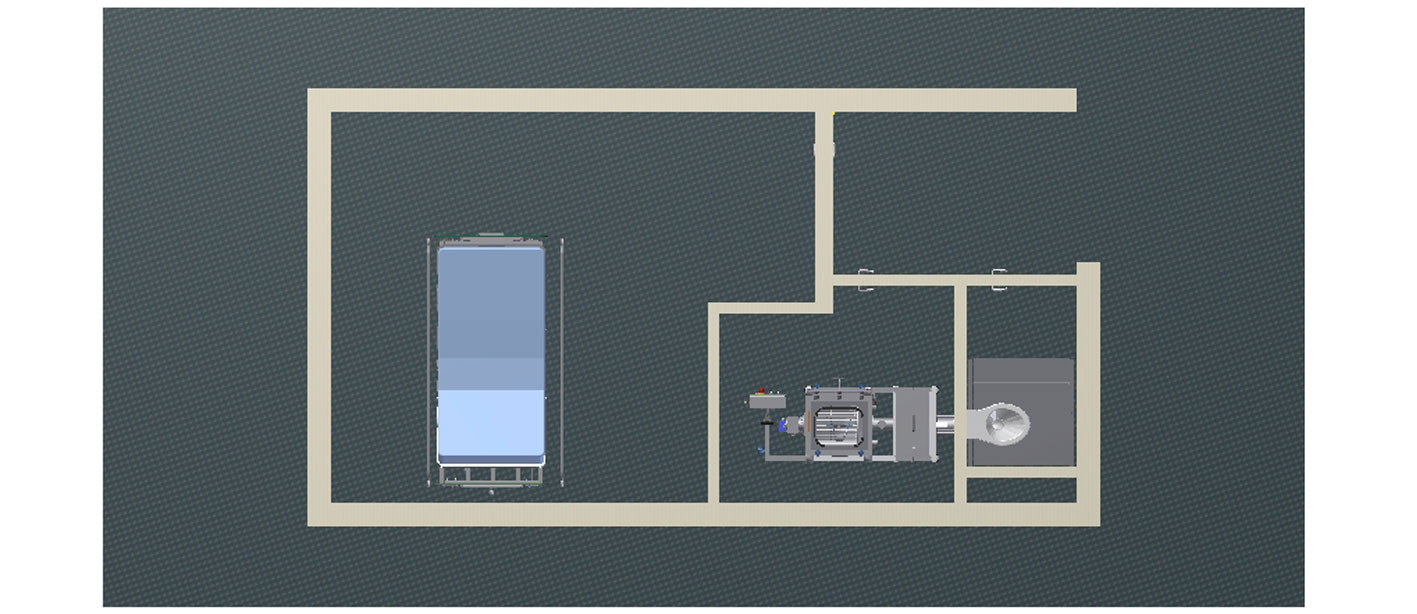

Graphic view (top view)
|
||||
